Trickle Feed Package Scripts

This script creates a database link to access the LIVE database information.

create public database link <live dbname> connect to <live dbauthname> identified by <live dbauthpswd> using '<live dbname>'

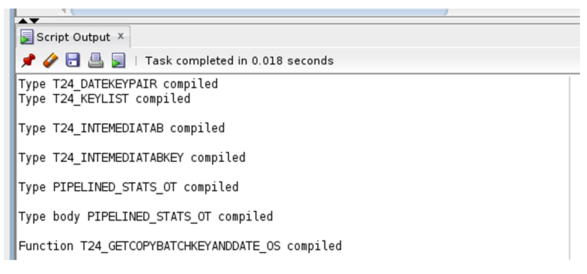

This script creates a function, which will be used when moving aged records from Temenos Transact live database to read only database. This function use the three-part (database.schema.table) name of the live table that stores information about the records to be copied. This helps to split the key in to DATE and RECID separately.

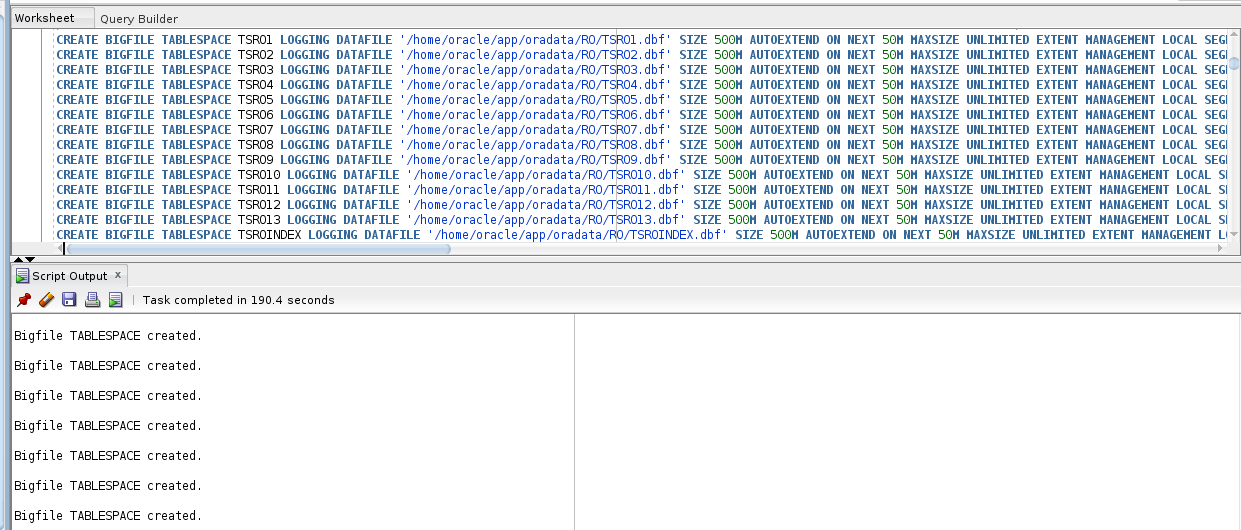

This script creates the tablespace based on the customer retention period. For example, if it is R years, then R+1 tablespace needs to be created.

CREATE BIGFILE TABLESPACE <tablespacename> LOGGING DATAFILE <datafile path> SIZE <tablespacesize> AUTOEXTEND ON NEXT <tablespaceextentsize> MAXSIZE UNLIMITED EXTENT MANAGEMENT LOCAL SEGMENT SPACE MANAGEMENT AUTO;

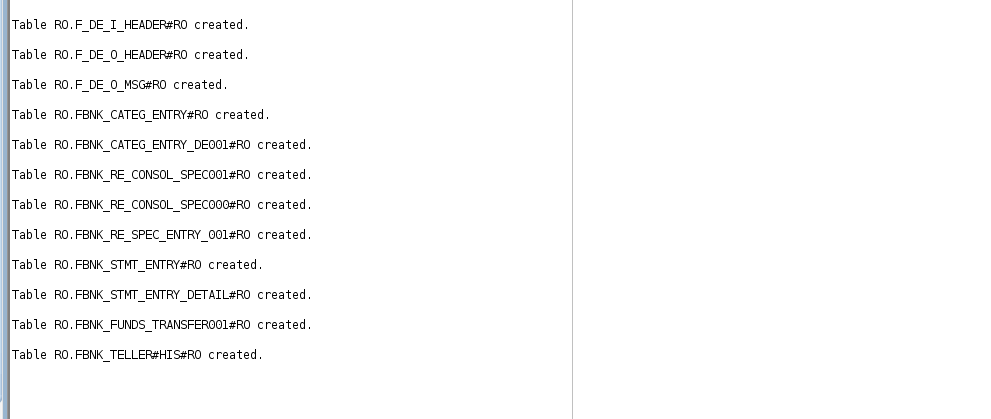

This script creates tables for the required DLM candidates. There are two templates given below one each for BLOB and XML types, respectively.

BLOB Type Template

/*** BLOB Type Template ***/
CREATE TABLE <TABLE name> (RECID VARCHAR2(255), XMLRECORD BLOB, PDATE DATE) COMPRESS FOR ALL OPERATIONS LOB (XMLRECORD) STORE AS SECUREFILE (ENABLE STORAGE IN ROW RETENTION CACHE COMPRESS <config val>) PARTITION BY RANGE (PDATE) INTERVAL (NUMTOYMINTERVAL(<partition interval num>,'<partition interval period>')) store IN (<TABLESPACE name>) (PARTITION p1 VALUES LESS THAN (TO_DATE('<date value>', 'YYYYMMDD')));

XML Type Template

/*** XML Type Template ***/
CREATE TABLE <TABLE name> (RECID VARCHAR2(255),XMLRECORD SYS.XMLTYPE,PDATE DATE ) COMPRESS FOR ALL OPERATIONS XMLTYPE XMLRECORD STORE AS SECUREFILE BINARY XML (ENABLE STORAGE IN ROW RETENTION CACHE COMPRESS <config val> ) PARTITION BY RANGE (PDATE ) INTERVAL (NUMTOYMINTERVAL(<partition interval num>,'<partition interval period>')) store IN (<TABLESPACE name>) ( PARTITION p1 VALUES LESS THAN (TO_DATE('<date value>', 'YYYYMMDD')));

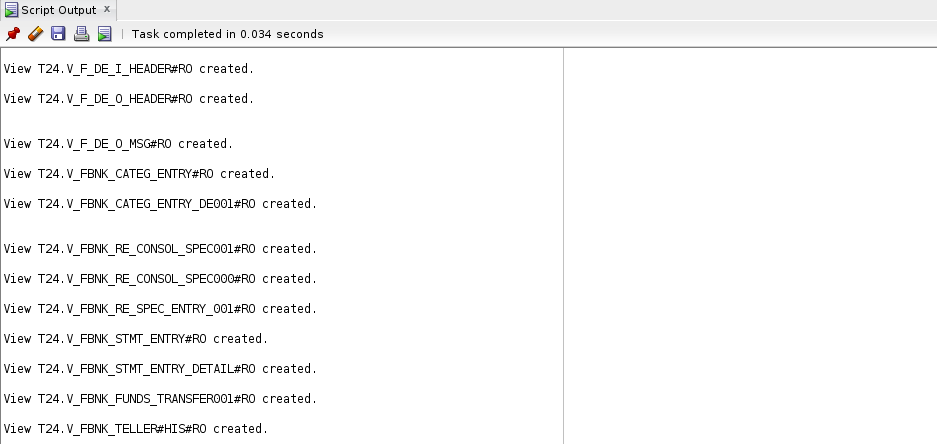

This script creates views for DLM candidates. You need to access DLM tables directly from the LIVE database.

CREATE OR REPLACE VIEW [<view schema>].[<view name>]
AS
SELECT a.RECID, a.XMLRECORD
,extractValue(a.XMLRECORD,'/row/c1[position()=1]') "<FIELD1>"
,extractValue(a.XMLRECORD,'/row/c1[position()=1]') "<FIELD2>"
,extractValue(a.XMLRECORD,'/row/c2[position()=1]') "<FIELD3>"
FROM [<ro schema name>].[<ro table name>];

This script is used to access the LIVE tables from DLM database while doing the COPY process.

CREATE PUBLIC SYNONYM [<synonym name>] FOR [<source schema>].[<live table name>]@[<live database name>]

This script gets the RO table record count for each configured DLM candidate.

This script creates a database link to access the DLM database information.

create public database link <ro dbname> connect to <ro dbauthname> identified by <ro dbauthpswd> using '<ro dbname>';

This script creates a purge function, which will be used during the deletion of records from the LIVE database. This helps to split the key in to PDATE and RECID separately.

This script is used to access the DLM tables while doing SELECT or READ redirection.

create public synonym <ro table name> for <schema>.<ro table name>@<ro dbname>;

This script creates views for DLM candidates. You need to access DLM tables directly from the LIVE database.

CREATE OR REPLACE VIEW [<view schema>].[<view name>]
AS
SELECT a.RECID, a.XMLRECORD
,extractValue(a.XMLRECORD,'/row/c1[position()=1]') "<FIELD1>"
,extractValue(a.XMLRECORD,'/row/c1[position()=1]') "<FIELD2>"
,extractValue(a.XMLRECORD,'/row/c2[position()=1]') "<FIELD3>"
FROM [<ro table name>];

This script updates the LIVE database table with RO table name in the ASSOCIATED column and also INSERT the VOC entry for DLM candidates.

This script gets the LIVE table record count for each configured DLM candidate.

This script creates a file group for DLM in SQL.

USE MASTER
GO
ALTER DATABASE [<database name>] ADD FILEGROUP [<file group name>];
GO
USE [<database name>]
GO

If the retention period is R years, the file group needs to be generated (R*12) + 2 times. The number of file group names cannot be more than (R*12) + 2. The <database name> indicates the name of the read-only database. The <file group name> should be unique. For example, the names can be like T24_RO_FG1, T24_RO_FG2, and so on, which you can change, if required.

If you reduce the number of file groups, the system generates only that number of statements. However, need to give a warning that doing so will create fragmentations in the database files

The ADD FILE statement needs to be generated for every file group created.

USE MASTER
GO
ALTER DATABASE [<database name>] ADD FILE ( NAME = N'<logical file name>', FILENAME = N'<file name with path>.mdf', SIZE = <file size>MB, FILEGROWTH = <file growth>MB) TO FILEGROUP [<file group name>];
GO
USE [<database name>]
GO

The <database name> indicates the name of the read-only database. The <logical file name> should be unique. For example, the names can be like T24_RO_ DataFile1, T24_RO_ DataFile2, and so on, which you can change, if required. You need to provide the <file name with path> for each statement to be generated. For example, E:\SQL Data1\T24_RO_DataFile1.mdf, E:\SQL Data2\T24_RO_DataFile2.mdf, and so on. The <file size> and <file growth> are set to 10 and 256 by default, respectively. You can change these values, if required. The FILE will be added to the FILEGROUP mentioned in <file group name>.

The <database name> indicates the name of the read-only database. The < partition function name> should be unique. The default value is T24RoPF, which you can change, if required.

The list of <date boundary value 1>, <date boundary value 2>, and so on needs to be generated based on the oldest data, which you want to keep in the read-only database. If the required old data belongs to January 2010, the first boundary value is 20100201 (first day of the next month in YYYYMMDD format). If the retention period is R years, there should be (R*12) + 1 boundary values for each proceeding month.

The <database name> indicates the name of the read-only database. The < partition function name> should be unique. The default value is T24RoPS, which you can change, if required. The < partition function name> indicates the name of the partition.

The list of [<file group 1>], [<file group 2>], and so on indicate the names of the file groups created. If the retention period is R years, there should be (R*12) + 2 file group names. If the created file groups are less than (R*12) + 2, the file group names can be duplicated in round-robin manner to create a list of (R*12) + 2 file group names.

This script creates a function, which will be used when moving aged records from Temenos Transact live database to read only database. This function use the three-part (database.schema.table) name of the live table that stores information about the records to be copied. This helps to split the key in to DATE and RECID separately.

This script creates tables for the required DLM candidates.

USE [<database name>]
GO
CREATE TABLE [ro.schema].[RoTableList]([RECID] ':keyType:' NOT NULL,[PDATE] [date] NOT NULL,[XMLRECORD] VARBINARY (MAX) NULL, CONSTRAINT [PK_'RoTableList'] PRIMARY KEY CLUSTERED ([RECID] ASC,[PDATE] ASC)) ON 'PartScheme'(PDATE)
GO

This script creates views for DLM candidates. You need to access DLM tables directly from the LIVE database.

USE [<database name>]
GO
CREATE VIEW [<view schema>].[<view name>]
AS
SELECT [RECID],
[XMLRECORD].value('(/row/<xml element 1>/text())[1]', 'DATE'),
[XMLRECORD].value('(/row/<xml element 2>/text())[1]', 'DATE'),
[XMLRECORD].value('(/row/<xml element n>/text())[1]', 'DATE')
FROM [<ro table schema>].[<ro table name>]
GO

This script is used to access the LIVE tables from DLM database while doing the COPY process.

CREATE PUBLIC SYNONYM [<synonym name>] FOR [<source schema>].[<live table name>]@[<live database name>]

This script gets the RO table record count for each configured DLM candidate.

This script creates a purge function, which will be used during the deletion of records from the LIVE database. This helps to split the key in to PDATE and RECID separately.

This script is used to access the DLM tables while doing SELECT or READ redirection.

This script creates views for DLM candidates. You need to access DLM tables directly from the LIVE database.

This script updates the LIVE database table with RO table name in the ASSOCIATED column and INSERT the VOC entry for DLM candidates.

This script gets the LIVE table record count for each configured DLM candidate.

The script creates a buffer. You need to replace <buffer name> tag with a valid name.

CREATE BUFFERPOOL <buffer name> IMMEDIATE SIZE 256 AUTOMATIC PAGESIZE 32K;

The script creates Federation to connect to the LIVE database from DLM database. You need to replace the following tags with the required values.

CREATE SERVER <server name>
TYPE db2/udb
VERSION <db2 version>
WRAPPER DRDA
AUTHORIZATION "<remote-authorization-name>" password "<remote-password>" OPTIONS
	(ADD NODE '<TCPIP node name>',
	 ADD DBNAME '<Cataloged database name>',
         ADD DB2_MAXIMAL_PUSHDOWN  'Y' );

The following script creates user mapping for Temenos Transact user in DLM Database.

CREATE USER MAPPING FOR <T24 user ID> SERVER <server name> OPTIONS (REMOTE_AUTHID '<remote-authorization-name>', REMOTE_PASSWORD '<remote-password>');

The script creates tablespace based on the retention period in DLM Database. You need to replace the tags with the required values.

CREATE LARGE TABLESPACE <Tablespace name> PAGESIZE 32K MANAGED BY AUTOMATIC STORAGE INITIALSIZE <tablespacesize> EXTENTSIZE <tablespaceextentsize> BUFFERPOOL '<ro.buffer>' AUTORESIZE YES INCREASESIZE 10 PERCENT;

This script creates a function, which will be used when moving records from Temenos Transact live database to read only database. This helps to split DATE and RECID from the input.

This script creates tables for the required DLM candidates. You need to replace the tags with the required values.

CREATE TABLE <ro.schema>.<ro tablename> (RECID VARCHAR(255) NOT NULL, XMLRECORD XML INLINE LENGTH 32400, PDATE DATE NOT NULL, CONSTRAINT <primarykey name> PRIMARY KEY (RECID)) PARTITION BY RANGE(PDATE) (STARTING FROM MINVALUE, STARTING FROM <partition interval period start> INCLUSIVE ENDING AT <partition interval period end> every 1 month) IN <TABLESPACE name> INDEX IN <Index TABLESPACE name> LONG IN <LOB TABLESPACE name> COMPRESS YES;
CREATE INDEX <ro.schema>.<index name> ON <ro.schema>.<ro tablename> (PDATE) CLUSTER;

All the tables should have a NICKNAME created in the DLM Database, which is required for copying the records from the LIVE database to DLM. You need to replace the tags with the required values.

CREATE NICKNAME <ro schema>.<live tablename> FOR <fedaration>.<live schema>.<live tablename>;

The view helps to get the record count of DLM tables in the DLM database, which is used in the dashboard enquiry results.

CREATE VIEW V_ENQ_DLM_ROCNT AS
select TABNAME concat '~' concat card as RECID
from syscat.tables
where TABNAME IN
  (SELECT ORCLFILENAME
  FROM TAFJ_VOC
  WHERE RECID IN
    (SELECT RECID CONCAT '$RO' FROM F_DLM_APPL_PARAMETER
    )
    );

The script creates Federation to connect to the LIVE database from DLM database. You need to replace the following tags with the required values.

CREATE SERVER <server name>
TYPE db2/udb
VERSION <db2 version>
WRAPPER DRDA
AUTHORIZATION "<remote-authorization-name>" password "<remote-password>" OPTIONS
	(ADD NODE '<TCPIP node name>',
	 ADD DBNAME '<Cataloged database name>',
         ADD DB2_MAXIMAL_PUSHDOWN  'Y' );

CREATE USER MAPPING FOR <T24 user ID> SERVER <server name> OPTIONS (REMOTE_AUTHID '<remote-authorization-name>', REMOTE_PASSWORD '<remote-password>');

This script creates the KEYLIST tables and views required for COPY, PURGE and ERROR processes.

DROP TABLE F_RO_COPY_KEYLIST;
CREATE TABLE T24.F_RO_COPY_KEYLIST (RECID VARCHAR(255) NOT NULL,XMLRECORD BLOB INLINE LENGTH 32000, PRIMARY KEY (RECID) ) IN T24DBDATA;
UPDATE TAFJ_VOC SET ISBLOB = 'B' WHERE ORCLFILENAME = 'F_RO_COPY_KEYLIST';
COMMIT;

DROP VIEW V_F_RO_COPY_KEYLIST;
CREATE VIEW T24.V_F_RO_COPY_KEYLIST(RECID, XMLRECORD)
AS
SELECT RECID, CAST(CAST(XMLRECORD  AS VARCHAR(32000) FOR BIT DATA) AS VARCHAR(32000) FOR MIXED DATA) FROM T24.F_RO_COPY_KEYLIST;


DROP TABLE F_RO_PURGE_KEYLIST;
CREATE TABLE T24.F_RO_PURGE_KEYLIST (RECID VARCHAR(255) NOT NULL,XMLRECORD BLOB INLINE LENGTH 32000, PRIMARY KEY (RECID) ) IN T24DBDATA;
UPDATE TAFJ_VOC SET ISBLOB = 'B' WHERE ORCLFILENAME = 'F_RO_PURGE_KEYLIST';
COMMIT;

DROP VIEW V_F_RO_PURGE_KEYLIST;
CREATE VIEW T24.V_F_RO_PURGE_KEYLIST(RECID, XMLRECORD)
AS
SELECT RECID, CAST(CAST(XMLRECORD  AS VARCHAR(32000) FOR BIT DATA) AS VARCHAR(32000) FOR MIXED DATA) FROM T24.F_RO_PURGE_KEYLIST;

DROP TABLE F_RO_ERROR_KEYLIST;
CREATE TABLE T24.F_RO_ERROR_KEYLIST (RECID VARCHAR(255) NOT NULL,XMLRECORD BLOB INLINE LENGTH 32000, PRIMARY KEY (RECID) ) IN T24DBDATA;
UPDATE TAFJ_VOC SET ISBLOB = 'B' WHERE ORCLFILENAME = 'F_RO_ERROR_KEYLIST';
COMMIT;

All the DLM tables should have a NICKNAME created in the Live Database, which is required for purging records from the live database. You need to replace the tags with the required values.

CREATE NICKNAME <live schema>.<readonly tablename> FOR <fedaration>.<ro schema>.<readonly tablename>;

The view helps to get the record count of DLM candidate tables in the LIVE database, which is used in the dashboard enquiry results.

CREATE VIEW V_ENQ_DLM_LIVECNT AS
SELECT TABNAME concat '~' concat card as RECID
from syscat.tables
where TABNAME IN
  (SELECT ORCLFILENAME
  FROM TAFJ_VOC
  WHERE RECID IN
    (SELECT RECID FROM F_DLM_APPL_PARAMETER
    )
  );

This script creates a function, which will be used when moving records from Temenos Transact live database to read only database. This helps to split DATE and RECID from the input.

This script creates storageGroup as per the data volume to store monthly or yearly basics. If monthly basics exceed 12+ 1, storageGroup needs to be created. You need to replace the tags with the required values.

ADD storageGroup name <storage.group.name> host <host.name> pid <sm.process.id>;

This script creates tables for the required DLM candidates. You need to replace the tags with the required values.

CREATE TABLE [<ro schema name>].[<ro table name>] (RECID VARCHAR(255) NOT NULL, XMLRECORD STRING, PDATE STRING, PRIMARY KEY (RECID,PDATE) ) PARTITION BY RANGE (PDATE) (PARTITION PRO<Sg.No> VALUES LESS THAN (<YearTempMthDay>) STORE IN <storage.group>);

This script creates views in DLM database for RO tables, which will be used during enquiry execution. You need to replace the tags with the required values.

CREATE OR REPLACE VIEW [<view schema>].[<view name>]
AS
SELECT a.RECID, a.XMLRECORD "FIELD1"
,extractValueJS(a.XMLRECORD, 1, 0) "FIELD2"
FROM [<ro schema name>].[<ro table name>] a;

This script creates views in DLM database for RO tables, which will be used during enquiry execution. You need to replace the tags with the required values.

CREATE OR REPLACE VIEW [<view schema>].[<view name>]
AS
SELECT a.RECID, a.XMLRECORD "FIELD1"
,extractValueJS(a.XMLRECORD, 1, 0) "FIELD2"
FROM [<ro schema name>].[<ro table name>] a;
