Promoted Columns

This section provides the script execution details for the Oracle database.

Execute the procedure after the initial separation process, if you are required to create any functional index in RO.

Command to invoke SP

EXEC promotedcolumnwrapper(LIVE_SCHEMA_NAME,RO_SCHEMA_NAME,LIVE_TABLE_NAME);

Pre-requisites before SP execution

The following stored procedures should be compiled successfully in the same order in the RO database:

• ScriptPromotedColumnFunction
• PromotedColumn_forROTables
• PromotedColumnWrapper

The stored procedures should be executed only from the RO database. It is sufficient to have select on ALL_DEPENDENCIES,ALL_IND_EXPRSIONS,ALL_IND_COLUMNS,ALL_TAB_COLS,ALL_USERS,ALL_TABLES,ALL_SOURCE data dictionary views.

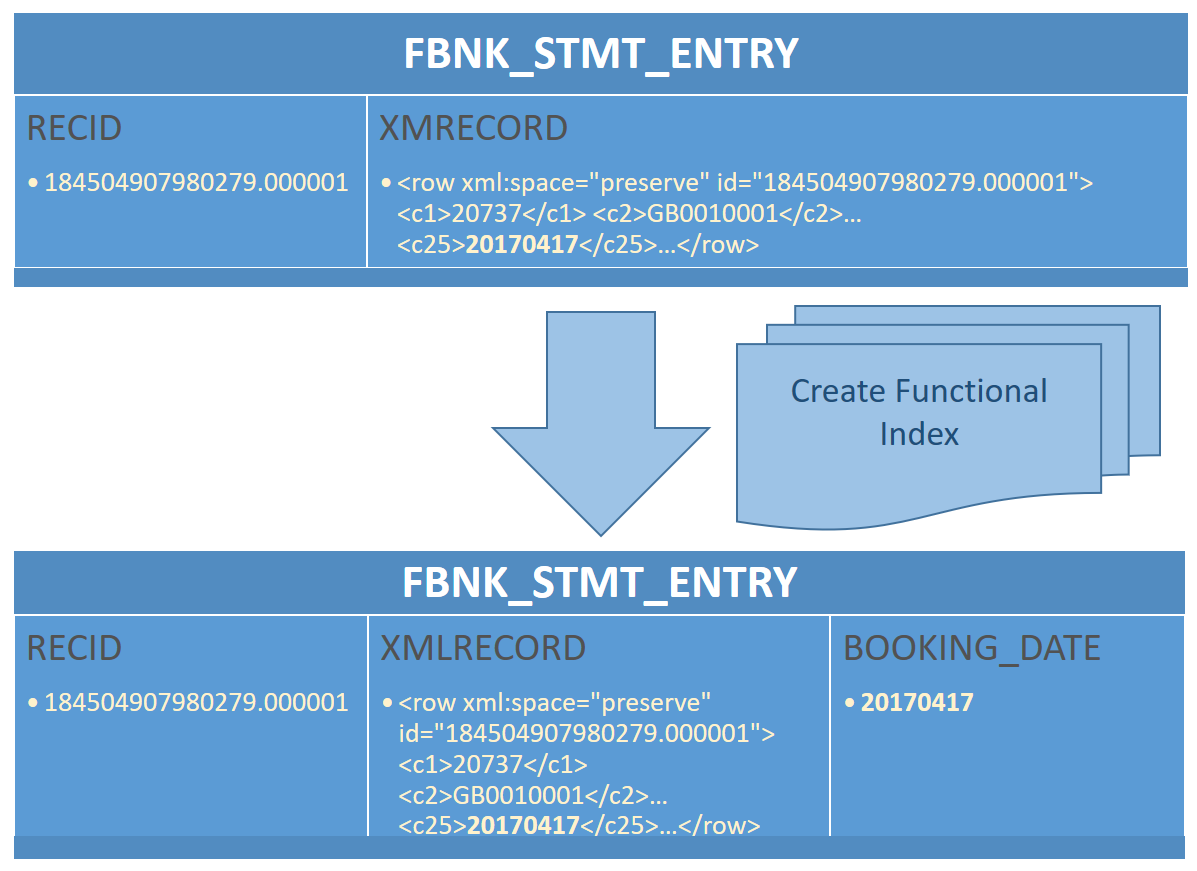

Create a promoted column in the LIVE database

CREATE FUNCTION FBE1_CATEG_ENTRY_C11(XMLRECORD SYS.XMLTYPE RETURN DATE DETERMINISTIC AS RTNVAL DATE; BEGIN SELECT XMLCAST(XMLQUERY('/row/c11/text()' PASSING XMLRECORD RETURNING CONTENT) AS DATE)INTO RTNVAL FROM DUAL; RETURN RTNVAL; END;
select DISTINCT NAME from all_source where TYPE='FUNCTION' AND OWNER='T24' AND NAME LIKE '%FBNK_CATEG%';

Add a new promoted column in the LIVE database

ALTER TABLE FBNK_CATEG_ENTRY
ADD VALUE_DATE DATE generated always as (cast(FBNK_CATEG_ENTRY_c11 (XMLRECORD) as DATE));

Add a new index in the LIVE database

CREATE INDEX IDX_FBNK_STMT_ENTRY_C11 ON FBNK_STMT_ENTRY(VALUE_DATE);

The following is the RO table schema before the execution of promoted column SP.

Execution of wrapper SP

EXEC promotedcolumnwrapper('T24','RO','FBNK_CATEG_ENTRY');

The schema of the RO table is altered with the newly added promoted column and an index.

You need to run the below query in the RO database to check and confirm the newly added column in the LIVE database. The new column is created in the RO database as a computed column.

SELECT
      DISTINCT C.COLUMN_NAME
    FROM
      ALL_DEPENDENCIES A,
      ALL_IND_EXPRESSIONS B,
      ALL_IND_COLUMNS C,
      ALL_TAB_COLS D
    WHERE
      A.NAME           =B.INDEX_NAME
    AND REFERENCED_TYPE='FUNCTION'
    AND TYPE          <> 'VIEW'
    AND C.INDEX_NAME=B.INDEX_NAME AND D.COLUMN_NAME=C.COLUMN_NAME AND D.VIRTUAL_COLUMN='YES' AND B.TABLE_NAME   = 'FBNK_CATEG_ENTRY#RO';

You need to run the below query in the RO database to check and confirm if the newly added index in the LIVE database is created for that column in the RO database.

SELECT
      C.COLUMN_NAME AS RO_COLUMN_NAME,B.INDEX_NAME AS RO_INDEX_NAME
    FROM
      ALL_DEPENDENCIES A,
      ALL_IND_EXPRESSIONS B,
      ALL_IND_COLUMNS C,
      ALL_TAB_COLS D
    WHERE
      A.NAME           =B.INDEX_NAME
    AND REFERENCED_TYPE='FUNCTION'
    AND TYPE          <> 'VIEW'
    AND B.TABLE_NAME   = 'FBNK_CATEG_ENTRY#RO' AND C.INDEX_NAME=B.INDEX_NAME AND D.COLUMN_NAME=C.COLUMN_NAME AND D.VIRTUAL_COLUMN='YES';

The procedure will refer the dblink, which is available in database for creating the promoted columns in DLM Database.

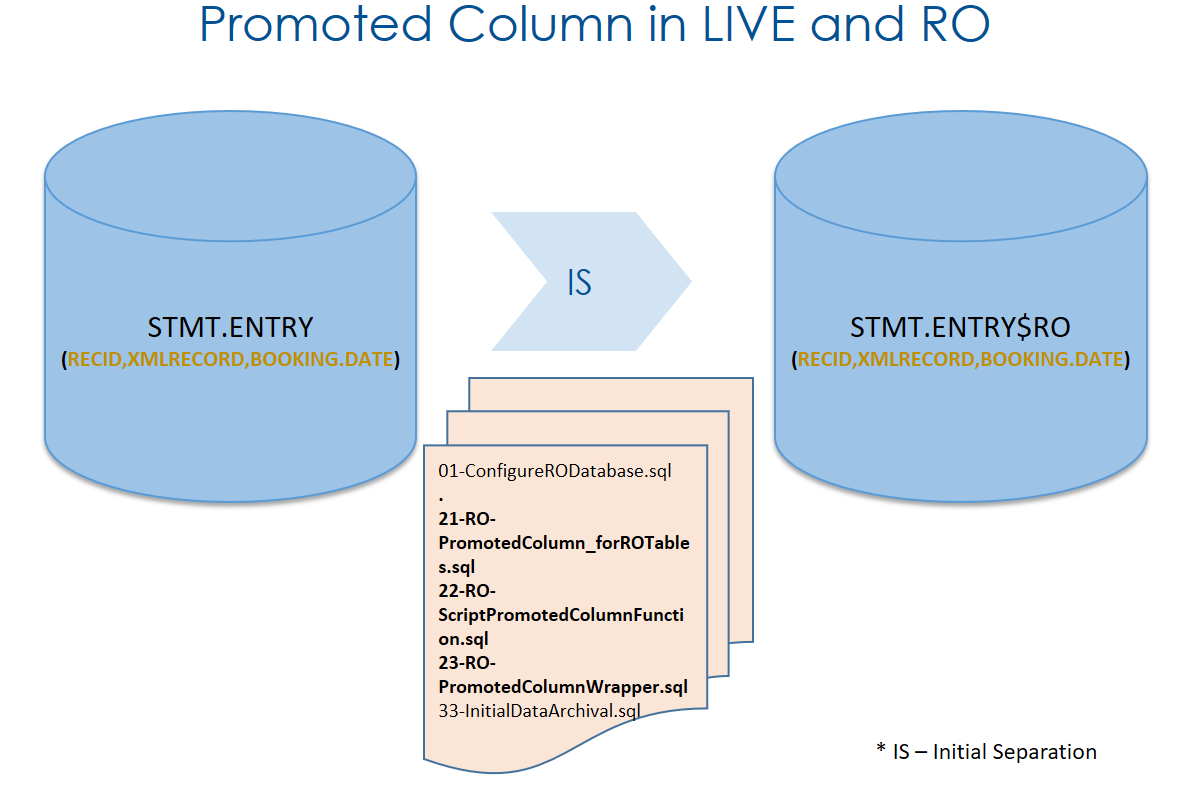

The current assumption is that RO tables can contain promoted columns in addition to the LIVE promoted columns. The procedure compares the RO table and corresponding LIVE database and ensures all promoted columns in the LIVE database are available in the RO database as well. Any other promoted column(s), which is available already in the RO database, will remain as is.

This section provides the script execution details for the MSSQL database.

Command to invoke Stored Procedure (SP)

EXEC [<<ROSchemaName>>].PromotedColumnWrapper
@LiveDatabaseName,@LiveSchemaName,@LiveTableName,@RODatabaseName,@ROSchemaName

Pre-requisites for SP execution

The following stored procedures should be compiled successfully in the same order in the RO database:

• ScriptPromotedColumnFunction
• PromotedColumn_forROTables
• PromotedColumnWrapper

The stored procedures should be executed only from the RO database. It is sufficient to have a PUBLIC role for the user to execute the PromotedColumnWrapper procedure in the RO database for the following tables.

• sys.sql_expression_dependencies
• INFORMATION_SCHEMA.ROUTINES
• sys.objects
• sys.columns
• sys.tables
• sys.schemas
• sys.computed_columns
• sys.indexes
• sys.index_columns

The various scripts involved in promoted columns feature for this database are as follows.

Create a promoted column in the LIVE database

CREATE FUNCTION dbo.FBNK_STMT_ENTRY_NOILP (@xmlrecord XML)
RETURNS nvarchar(100)
WITH SCHEMABINDING
BEGIN
RETURN @xmlrecord.value('(/row/c12/text())[1]', 'nvarchar(100)')
END;

Add a new promoted column in the LIVE database

ALTER TABLE dbo.FBNK_STMT_ENTRY
ADD Currency AS dbo.FBNK_STMT_ENTRY_NOILP(XMLRECORD) PERSISTED;

Add a new index in the LIVE database

CREATE INDEX IDX_FBNK_STMT_ENTRY_C12 ON FBNK_STMT_ENTRY(Currency);

The following is the RO table schema before the execution of promoted column SP.

Execution of wrapper SP

The schema of the RO table is altered with the newly added promoted column and an index.

You need to run the below query in the RO database to check and confirm the newly added column in the LIVE database. The new column is created in the RO database as a computed column.

SELECT
t.name as ROTableName,c.name as RO_ComputedColumn,COMP.definition as FunctionDefinition
FROM sys.columns AS c
INNER JOIN sys.tables AS t
ON c.[object_id] = t.[object_id]
INNER JOIN sys.schemas AS s
ON t.[schema_id] = s.[schema_id]
INNER JOIN sys.computed_columns COMP
ON COMP. [object_id] = t.[object_id]
AND COMP.column_id = c.column_id AND is_persisted = 1
WHERE COLUMNPROPERTY(t.[object_id], c.name, N'IsIndexable') = 1
AND COLUMNPROPERTY(t.[object_id], c.name, N'IsDeterministic') = 1
AND COLUMNPROPERTY(t. [object_id], c.name, N'IsPrecise') = 1
AND t.uses_ansi_nulls = 1
AND c.is_computed = 1
AND t.name='FBNK_STMT_ENTRY#RO'

You need to run the below query in the RO database to check and confirm if the newly added index in the LIVE database is created for that column in the RO database.

SELECT ind.name as RO_IndexName,col.name as ROIndex_ColumnName
FROM sys.indexes ind
INNER JOIN sys.index_columns ic ON  ind.object_id = ic.object_id and ind.index_id = ic.index_id
INNER JOIN sys.columns col ON ic.object_id = col.object_id and ic.column_id = col.column_id
INNER JOIN sys.tables t ON ind.object_id = t.object_id
And schema_name (t.schema_id) = 'ro' and t.name = 'FBNK_STMT_ENTRY#RO'

The assumption is that, RO tables can contain promoted columns in addition to the LIVE promoted columns. The procedure compares the RO table and corresponding LIVE database and ensures all promoted columns in the LIVE database are available in the RO database as well. Any other promoted column(s), which is available already in the RO database, will remain as is.

You must have SELECT rights on the list of data dictionary tables listed in Oracle databases.

This section provides the script execution details for the DB2 database.

Execute the procedure after the initial separation process, if you are required to create any functional index in RO.

Command to invoke SP

EXEC promotedcolumnwrapper(LIVE_SCHEMA_NAME,RO_SCHEMA_NAME,LIVE_TABLE_NAME);

Pre-requisites before SP execution

The following stored procedures should be compiled successfully in the same order in the RO database:

• ScriptPromotedColumnFunction
• PromotedColumnForRoTables
• IndexCreationForRoTables
• PromotedColumnWrapper

The stored procedures should be executed only from the RO database. It is sufficient to have select on SYSCAT.SCHEMATA,SYSCAT.TABLES,SYSCAT.COLUMNS,SYSCAT.INDEXES,SYSIBM.ROUTINES data dictionary views.

Create a promoted column in the LIVE database

create function FBNK_FUNDS_TRANSFER001_c1(xmlrecord XML)
returns varchar(100)
language sql contains sql
no external action deterministic
return xmlcast(xmlquery('$t/row/c1' passing xmlrecord as "t") as varchar(100));
set integrity for FBNK_FUNDS_TRANSFER001 off;
ALTER TABLE FBNK_FUNDS_TRANSFER001 ADD TRANSACTION_TYPE varchar(35) generated always as (T24.FBNK_FUNDS_TRANSFER001_c1(XMLRECORD));
SET INTEGRITY FOR FBNK_FUNDS_TRANSFER001 IMMEDIATE CHECKED FORCE GENERATED ;
CREATE INDEX IDX1_FBNK_FUNDS_TRANSFER001 ON FBNK_FUNDS_TRANSFER001 (TRANSACTION_TYPE);

Execution of wrapper SP

EXEC promotedcolumnwrapper('T24','RO','FBNK_FUNDS_TRANSFER001');

The schema of the RO table is altered with the newly added promoted column and an index.

The current assumption is that RO tables can contain promoted columns in addition to the LIVE promoted columns. The procedure compares the RO table and corresponding LIVE database and ensures all promoted columns in the LIVE database are available in the RO database as well. Any other promoted column(s), which is available already in the RO database, will remain as is.
