Data Model
The Account Aggregation entities and their respective roles are detailed in this section.

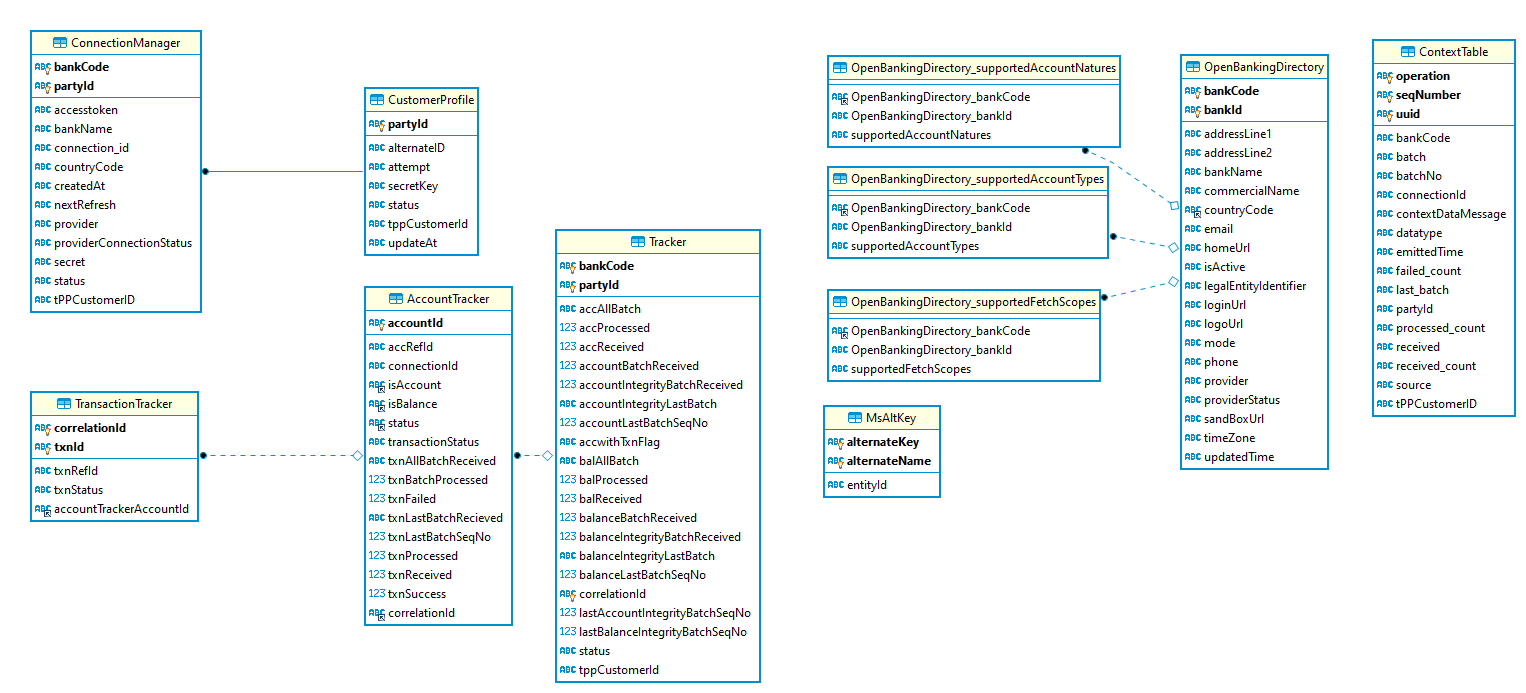

The Account Aggregation microservices has multiple entities and each entity has a different role to play. The entity relationship diagram for Account Aggregation microservice is shown below.
The various entities of Account Aggregation microservices are explained below:
Customer Profile
This Entity stores the Customer ID, Third Party ID , SecretKey, Status and other details that are required for each customer. It also stores an Alternate ID, to avoid duplication.
Connection Manager
This entity stores the connection details for the customer—the banks to which access is provided.
Open Banking Directory
This entity stores the list of banks available with the provider and some basic information about the banks.
Context
This entity maintains the integrity and consistency as we have contexts coming in from many microservices such as Holding and Arrangement, which are dependent on the Account Aggregation microservice.
Tracker, Account Tracker, Transaction Tracker Entities
These entities ensure the data related to a customer, accounts, balances and transactions are transformed, streamed and stored correctly in the Holdings and Arrangement microservices.
