Account Aggregation Architecture

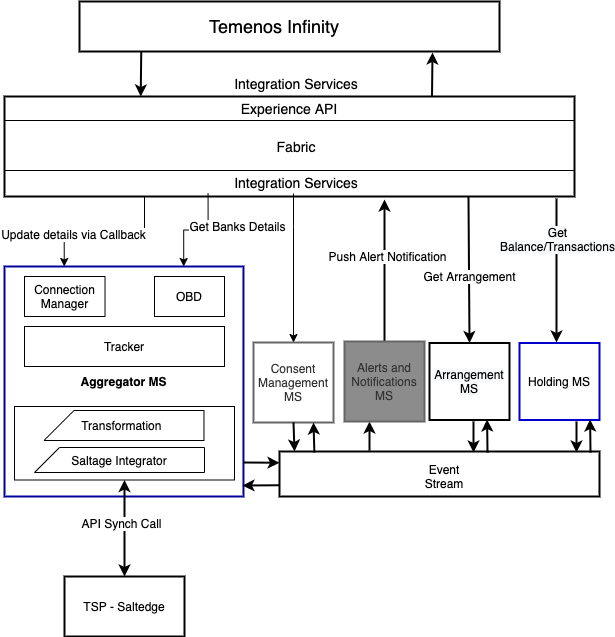

This section shows the architecture of the Account Aggregation Microservice.
Account Aggregation microservice elements are explained in the below table.
|
Element |
Description |
|---|---|
|
Other Bank Directory |
Holds the other bank details |
|
Salt Edge Integrator |
Communicates with the TPP provider and transfers the respective account and transaction details to the Arrangement and Holdings microservices. |
|
External Connection Manager |
holds the connection details of the TPP for every digital profile user |
|
Tracker |
Tracks whether the account transactions and balances are successfully loaded to the respective microservice |

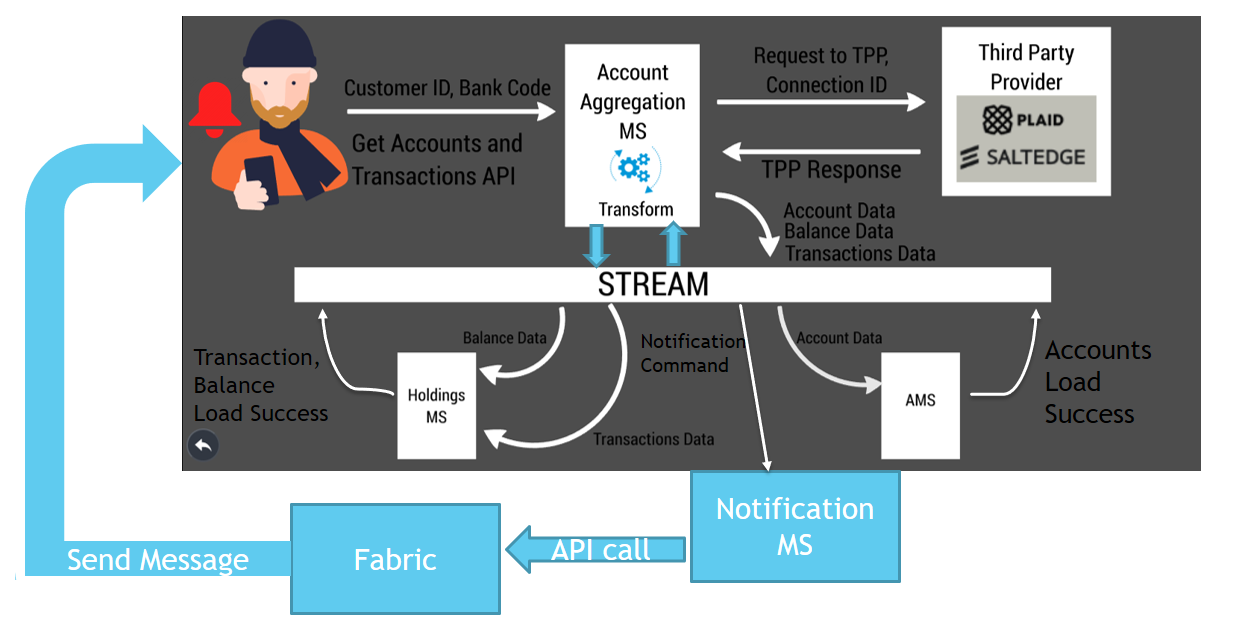

The workflow among various microservices in this architecture is explained below:
- The Arrangement microservice holds the static details of the accounts received from the TPP provider.
Holdings microservice stores the account balances and transactions. - The Consent microservice stores the consent received from the TPP.
- The Notification microservice acts as an intermediate layer between the Account Aggregation Microservice and Fabric. It generates notifications for the events defined below and sends the request to Fabric.
- Fabric then forwards and displayed the message to the respective customer through text message, email or app notification.
